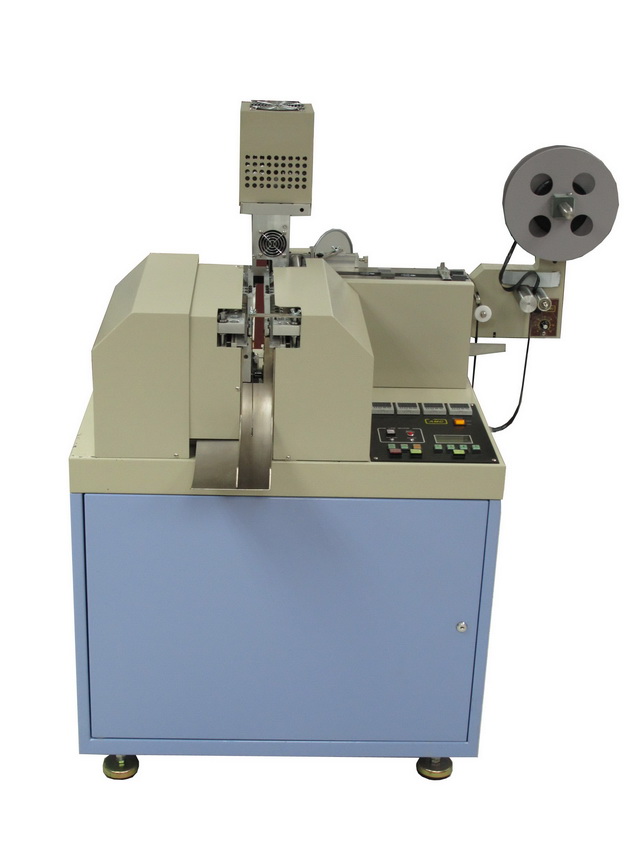

ALF-380U
Ultrasonic Cut & End Fold machine

horizontal rule



Product leaflet

  Features:

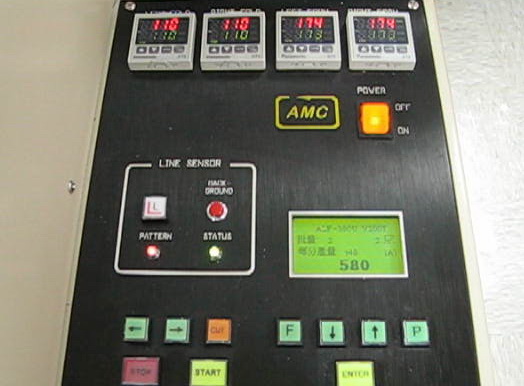

Multilingual menu driven computer controlled ultrasonic cut & end fold
High output - 140+ labels per minute
Easy and quiet operation
Intelligent software prevent false cut
Numerical control fold length with no mechanical adjustment.
Programmable cutting force for long lasting cutting blade and horn.
100% digital control, very little mechanical maintenance
Very long cutting blade life

horizontal rule

SPECIFICATION:
Label width:
label length:
Fold length:
End fold length:
Cutting method:
Throughput:
Cut accuracy:
Ultrasonic:
AC main:
Dimension:
Weight:
10 mm to 50 mm
30 mm to 140 mm
30 mm to 120 mm
4 mm to 10 mm
Ultrasonic cut
140+ labels per minute (50 mm length after fold)
+/- 0.5 mm
30Khz, 500 Watts
220 Volts AC
115 cm (W) x 76 cm (D) x 138 cm (H)
300 Kgs
