ALF-300
Ultrasonic Label Cut & Fold

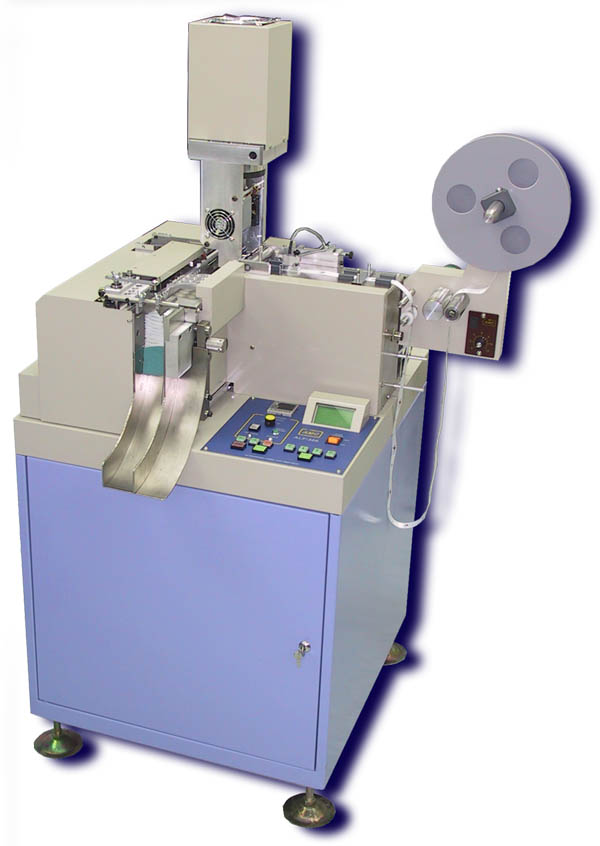

Ultrasonic label cut and fold machine
Click here for larger image
  Features:
Multilingual menu driven computer controlled ultrasonic cut & fold
High output - 700 dozen per hour
Easy and quiet operation
Intelligent label sensor for false cutting elimination
Numerical control fold length with no mechanical adjustment.
Programmable cutting force for long lasting cutting blade and horn.
100% digital control, very little mechanical maintenance
Very long cutting blade life

SPECIFICATION:
Label width:
label length:
Cutting method:
Throughput:
Cut accuracy:
Ultrasonic:
AC main:
Dimension:
Weight:
10 mm to 53 mm
20 mm to 160 mm
Ultrasonic cut
700 dozens per hour (80 mm label length)
+/- 0.5 mm
1400 Watts
220 Volts AC / 110 Volts AC
850 mm (W) x 680 mm (D) x 1430 mm (H)
150 Kgs

Hot or Cold cut machine Ultrasonic Cut machine Ultrasonic cut and fold machine High speed ultrasonic cut machine Flexographic rotary printer
