ALC-108H
Super High Speed Ultrasonic Straight Cut Label machine

horizontal rule


  Features:

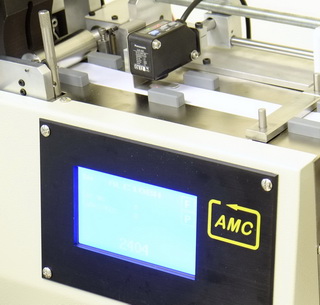

Multilingual menu driven with touch screen computer controlled ultrasonic straight cut
Super High speed output - 900+ cut per minute
Easy and quiet operation
Intelligent software prevent false cutting

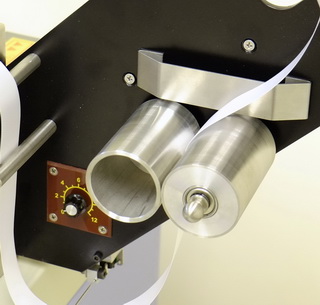

Auto adjust unwinder speed

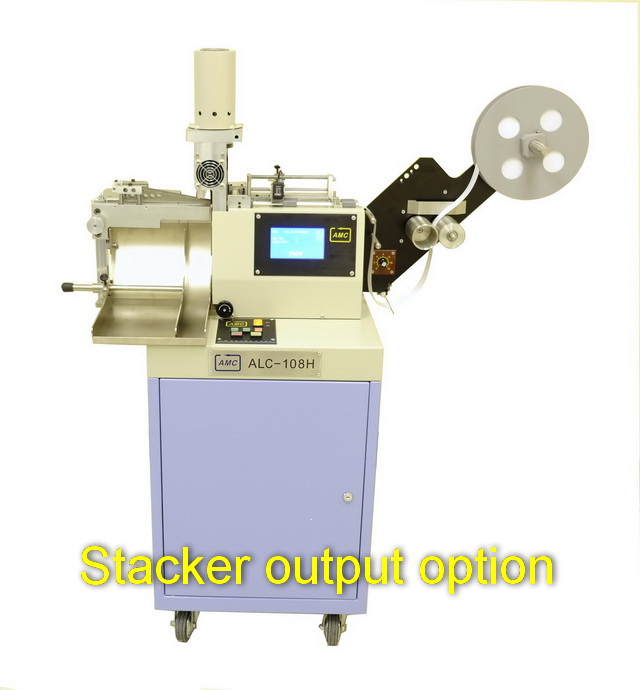

Option vertical stacker for better label stack

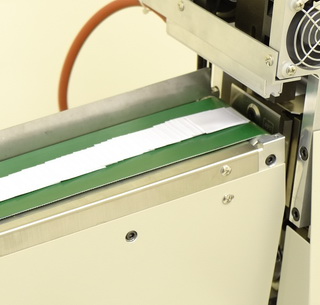

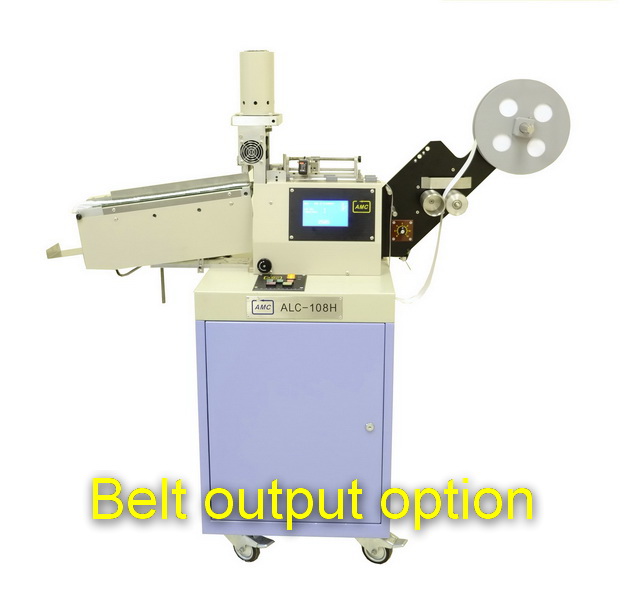

Option horizontal rolling belt out for easy operation
score-cut or semi-cut to form fold line for manual fold
Mechanical together with programmable cutting force for long lasting cutting blade and horn.
100% digital control, very little mechanical maintenance
up to 900+ cuts per minute
Very long cutting blade life
Product leaflet

Product leaflet


horizontal rule

SPECIFICATION:
Label width:
Label length:
Cutting method:
Throughput (Belt):
Throughput (Stacker):
Cut accuracy:
Ultrasonic:
AC main:
Dimension:
Weight:
up to 50 mm
up to 1,000 mm
Ultrasonic cut
900+ labels per minute (40 mm)
800+ labels per minute (40mm)
+/- 0.5 mm
30Khz, 500 Watts
220 Volts AC
128 cm (W) x 66 cm (D) x 135 cm (H)
160 Kgs
