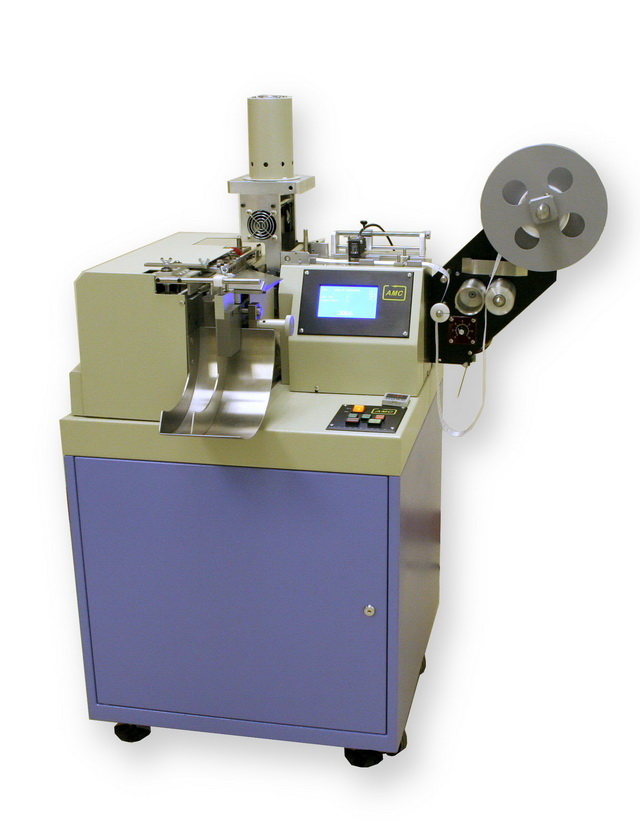

ALF-300H
High Speed Ultrasonic Label Cut & Fold (Loop/Center) Label machine

horizontal rule


Product leaflet

  Features:

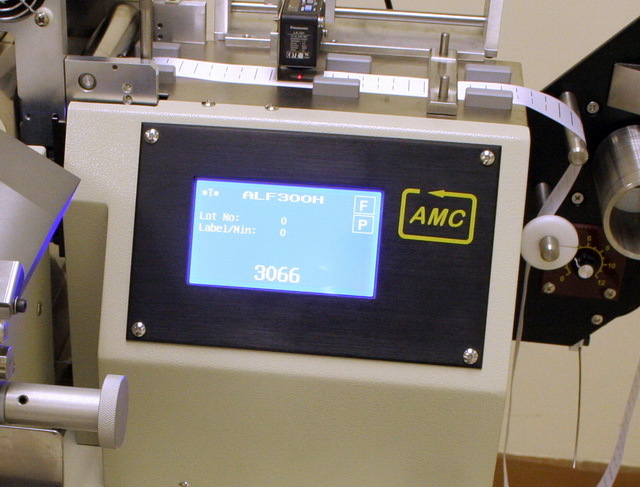

Multilingual menu driven with touch screen computer controlled ultrasonic cut & fold
Very High Speed output - 240 folds per      minute (100mm label length)
Easy and quiet operation
Intelligent software prevent false cutting
Numerical control fold length with no mechanical adjustment.
Programmable cutting force for long lasting cutting blade and horn.
100% digital control, very little mechanical maintenance
Very long cutting blade life


horizontal rule

SPECIFICATION:
Label width:
label length:
Fold length/cut only:
Cutting method:
Throughput:
Cut accuracy:
Ultrasonic:
AC main:
Dimension:
Weight:
10 mm to 50 mm
20 mm to 260 mm
20 mm to 130 mm
Ultrasonic cut
240 fold per minute (100mm label length)
+/- 0.5 mm
30Khz, 500 Watts
220 Volts AC
850 mm (W) x 650 mm (D) x 1270 mm (H)
250 Kgs
