ALC-108A

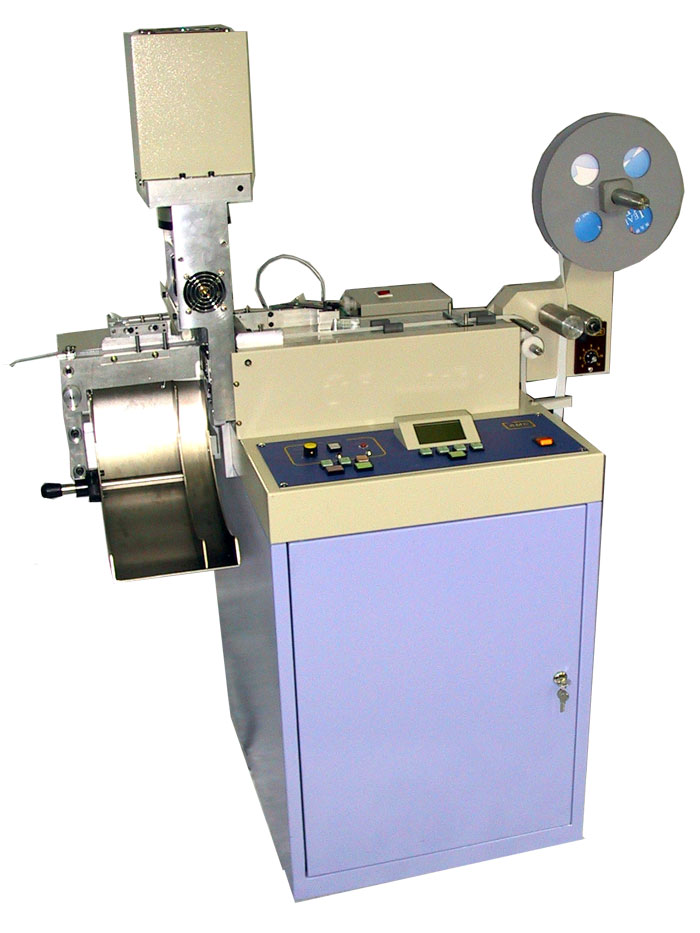

High Speed Ultrasonic Label Cutter

High speed ultrasonic label cutter
Click here for larger image
  Features:
Computer controlled ultrasonic cutter
Very High output - 1,500 dozen per hour
Long Vertical Stacker - reduce time to service
Multilingual menu driven user interface
Easy and quiet operation
Intelligent label mark sensor for false cutting elimination
Built-in anti-static bar
Programmable cutting force, which can score to simulate a folding effect on the label.
100% digital control, very little mechanical maintenance
Very long cutting blade life

SPECIFICATION:
Label width:
label length:
Cutting method:
Throughput:
Cut accuracy:
Ultrasonic:
AC main:
Dimension:
Weight:
10 mm to 55 mm
20 mm to 800 mm
Complete cut or score-cut (fold simulation)
1,500 dozens per hour (50 mm label length)
+/- 0.5 mm
1400 Watts
220 Volts AC / 110 Volts AC
850 mm (W) x 680 mm (D) x 1370 mm (H)
60 Kgs

Hot or Cold cut machine Ultrasonic Cut machine Ultrasonic cut and fold machine High speed ultrasonic cut machine Flexographic rotary printer
